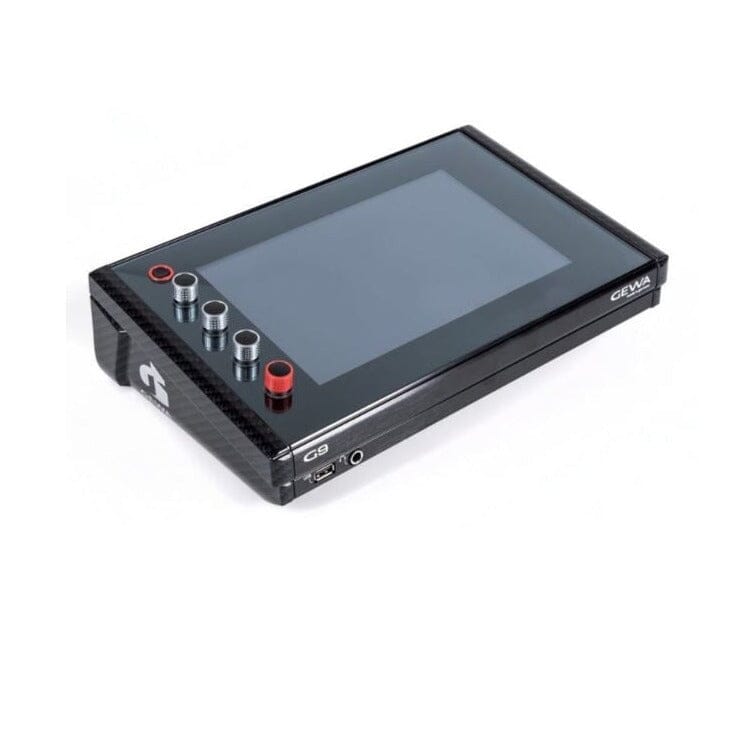

Gewa Music G9 E-Drum Module Workstation (G9-DRUM-WORKSTATION)
DEMO Clearance
The Gewa G9 is an electronic drum module. It has a large touchscreen, lots of trigger inputs, lots of outputs, works with many different pad types, has built in Wi-Fi, lots of effects, EQ, and customization options. It's already gotten quite a few updates since it launched and will be updated as time goes on.
Drum-Kits
40 Preset + unlimited User Presets
Instruments
more than 400
Effect Types
Pad Compressor: 3-band full parametric EQ for each Pad
Output Compressor & 4 Band full parametric EQ for each Output
Room: 12 Types / Multi: 9 Algorithms
User Sample Import
100 Wave or 100 Multi layered full instruments (Head/Rim/X-Stick - Bell/Bow/Edge)
Length: 320 Mono, 160 Stereo
File Format: WAV (44.1 kHz, 16/24 bit)
USB/internal Memory
External Memory
external USB
Display
1280 x 800px TFT
integrated in Touch Display
4 Hardware Dials, Software based
Recorder
Realtime (wav)
File Format: WAV (44.1 kHz, 16 bit)
Wireless Connections
Bluetooth, Wi-Fi
Recording
Sampling Rate (Original): 48 kHz
Sampling Rate: (with Converter): 96 kHz, 44,1 kHz
Recording: 8 Channels
Play: 2 Channels
Connections
TRIGGER INPUTS: 14 x 1/4" TRS Socket
MONITOR OUT: 2 x 1/4" TRS Socket
MASTER OUT: BALANCED XLR
SPDIF (Stereo) 48 kHz
DIRECT OUT: 8 x 1/4" TRS Socket
PHONES: 1/4" TRS Socket
MIX IN: 1/4" TRS Socket (Stereo)
MIDI (IN, OUT/THRU)-Outputs
COMPUTER-CONNECTION: USB B-Type (USB Hi-Speed AUDIO/MIDI)
FOOT SWITCH: 1 x TRS (2 Channel)
AC IN (EURO 8)
